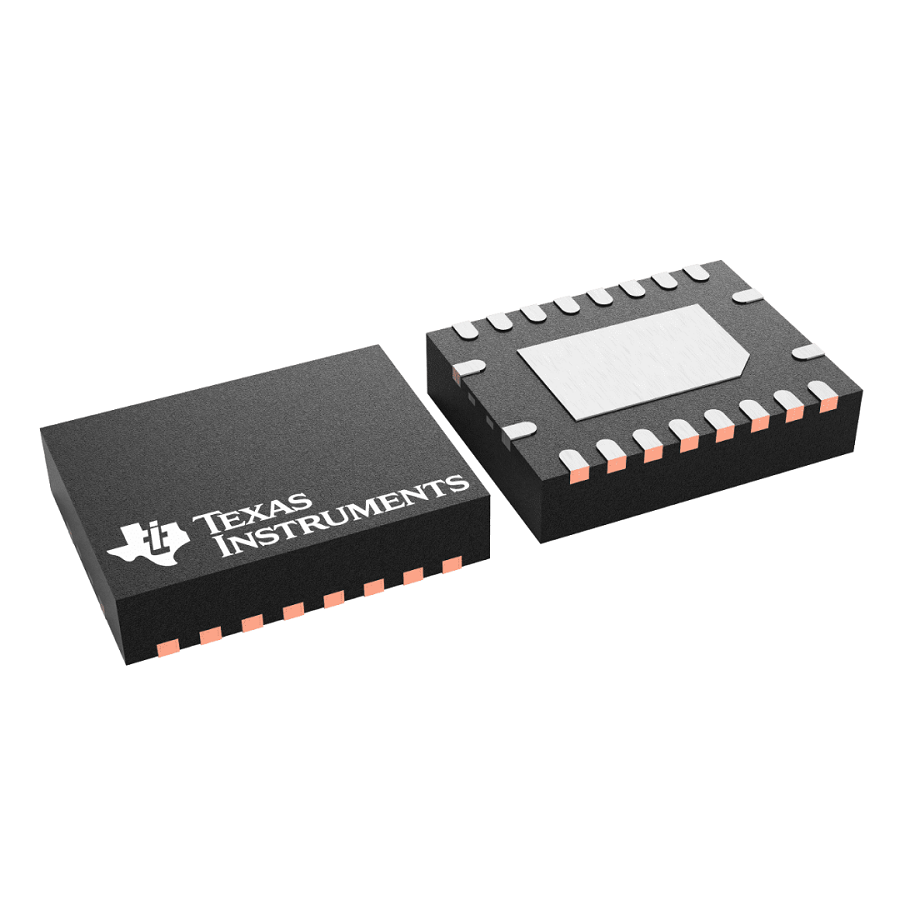

SN74LV541ARGYR
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74LV541ARGYR
Datasheet:
Description:
Buffers, Drivers, Resceivers and Transceivers VQFN-20 SMD/SMT 3-State
| Parameter | Value |
|---|---|
| Length | 4.5 mm |
| Width | 3.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Height | 1 mm |
| Packaging | Reel |
| Thickness | 0.9 mm |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Elements | 1 |
| Output Type | 3-State |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2 V |
| Number of Channels | 8 |
| Number of Bits | 8 |
| Turn-On Delay Time | 24 ns |
| Operating Supply Current | 20 µA |
| Quiescent Current | 20 µA |
| Propagation Delay | 7 ns |
| High Level Output Current | -16 mA |
| Low Level Output Current | 16 mA |
| Logic Function | Buffer, Inverting |
| Number of Inputs | 8 |
| Number of Bits per Element | 8 |
| Number of Outputs | 8 |
| Number of Input Lines | 8 |
| Number of Output Lines | 3 |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
Stock: 12
Distributors
pcbx
pcbxUnit Price$0.53520
Ext.Price$0.53520
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53520 | $0.53520 |
| 10 | $0.45619 | $4.56190 |
| 25 | $0.42003 | $10.50075 |
| 50 | $0.38674 | $19.33700 |
| 100 | $0.35609 | $35.60900 |
| 300 | $0.34864 | $104.59200 |
| 500 | $0.34134 | $170.67000 |
| 1000 | $0.33242 | $332.42000 |
